Sorter

Key Facts

  • Automated sorting of goods or orders
  • Increase efficiency, speed and quality in the sorting process
  • Flexible adaptation to changing requirements
More Information
Sortiersysteme – Sorter

  • Long-Term

  • No Price Information Available

  • To the Offerings

  • Long-Term

  • No Price Information Available

  • To the Offerings

Function and benefits of sorting systems

Sorters are used in logistics for the automatic sorting of shipments and goods. They consist of a combination of conveyor belts and ejection mechanisms that transport the goods from an entry point to the respective destination point. On the way there, the goods are detected by sensors and cameras and the correct destination is determined using the barcode, RFID tag or other factors. Sorting systems are usually modular in design and the components used depend heavily on the characteristics of the load units to be transported. For example, roller, overhead or belt conveyors are used depending on the goods to be conveyed. Further processes, such as depalletizing and palletizing goods, can take place within the system. Short-term intermediate storage systems can also be built around the sorting system to ensure efficient use of space and a smooth process flow. The conveyor technology is also equipped with an ejection mechanism, which ejects the goods at the right place onto the correct end point or the next conveyor. Depending on the article characteristics, tilting trays, pushers, cross belts or sliding shoe mechanisms are used, for example.
 Read More
Does this solution fit your needs?

Sorter - Solves the following Problems!

Select one of the problems. You will receive instructions that you can use to calculate optimization potential.
Continue to the offerings.

Sorter - Find the Right Offering for You

Select products and receive detailed information. You can use the platform to contact product suppliers

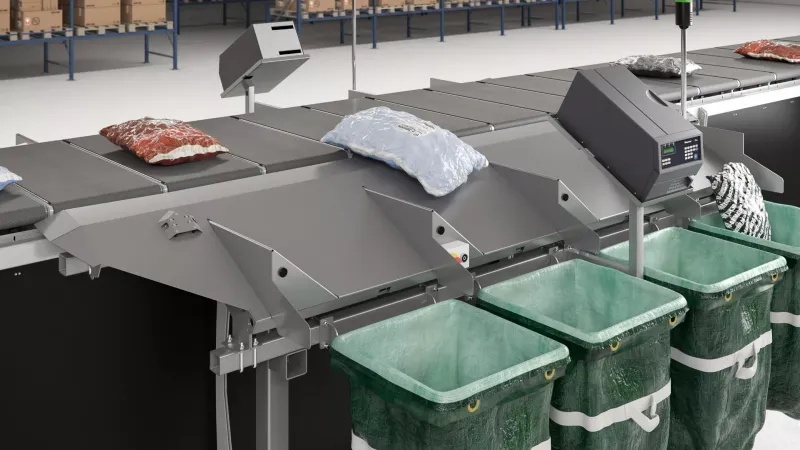

BG Line Sorter

The BG Line Sorter sets new standards in medium volume intralogistics by combining the simplicity of a line sorter with the versatility of a high-end cross-belt sorter.
BG Line Sorter

Price from

On request

Sorting capacity (pcs/h)

1,500 - 10,000 pcs/h

Product type

Bins, Cartons, Paperbag, Bags, Polybag

Dimensions product type (L)

140 - 1,500 mm

Dimensions product type (W)

140 - 800 mm

Dimensions product type (H)

5 - 800 mm

More Information

BG Sorter CB

Cross-belt technology enables the sortation system to handle almost all types of items and opens up the possibility of automating the handling of polybags and items with other difficult surfaces in a high-speed system.
BG Sorter CB

Price from

On request

Sorting capacity (pcs/h)

20,000 pcs/h

Product type

Bins, Cartons, Paperbag, Bags, Polybag

Dimensions product type (L)

125 - 1,500 mm

Dimensions product type (W)

100 - 800 mm

Dimensions product type (H)

1 - 800 mm

More Information

BG Sorter ET

For high-capacity automated sorting, the BG tilt-tray-based sorter features a design to increase throughput and efficiency.
BG Sorter ET

Price from

On request

Sorting capacity (pcs/h)

12,000 pcs/h

Product type

Cartons, polybag, paper bag, container

Dimensions product type (L)

200 - 2,000 mm

Dimensions product type (W)

100 - 800 mm

Dimensions product type (H)

15 - 800 mm

More Information

Denisort

The Denisort is a tilt-tray sorter which, after manual or automatic filling, gently sorts the articles into different types of chutes in a horizontal rotation without errors.
Denisort

Price from

CHF 600.000

Product type

Cartons, Polybag, Paperbag

Max. dimensions product type (L)

800 mm

Max. dimension product type (W)

600 mm

Max. dimensions product type (H)

300 mm

Max. weight of the product

30 kg

More Information

Denisort Compact

The Denisort is a tilt-tray sorter which, after manual or automatic filling, gently sorts the articles in a linear arrangement into different types of chutes without errors.
Denisort Compact

Price from

400,000 CHF

Product type

Cartons, Polybag, Paperbag

Max. dimensions product type (L)

800 mm

Max. dimension product type (W)

600 mm

Max. dimensions product type (H)

300 mm

Max. weight of the product

30 kg

More Information

POSISORTER

The POSISORTER is a sliding shoe sorter that combines modern conveying technology with gentle product handling.
POSISORTER

Price from

On request

Product type

Bins & Containers, Cartons

Max. dimensions product type (L)

1,524 mm

Max. dimension product type (W)

914 mm

Max. dimensions product type (H)

914 mm

Max. weight of the product

50 kg

More Information

CROSSORTER

Fast, flexible sorting with maximum eco-effectiveness
CROSSORTER

Price from

On request

Product type

Cartons, Polybag

Max. dimensions product type (L)

1,500 mm

Max. dimension product type (W)

800 mm

Max. dimensions product type (H)

800 mm

Max. weight of the product

50 kg

More Information

TRAYSORTER

The TRAYSORTER van Vanderlande offers these advantages in a highly modular and flexible concept suitable for a wide range of markets and applications.
TRAYSORTER

Price from

On request

Product type

Cartons, Polybag, Paperbag, Bags

Max. dimensions product type (L)

780 mm

Max. dimension product type (W)

390 mm

Max. dimensions product type (H)

200 mm

Max. weight of the product

6 kg

More Information

Compaxorter

The COMPAXORTER is a high-capacity horizontal sorting conveyor that can process a wide range of products, from small packs (up to 2.5 mm thin) to larger packs (up to 550 x 460 mm).
Compaxorter

Price from

On request

Product type

Cartons, Polybag, Paperbag

Max. dimensions product type (L)

550 mm

Max. dimension product type (W)

460 mm

Max. dimensions product type (H)

460 mm

Max. weight of the product

15 kg

More Information

DFT Split-Tray Sorter

The DFT Split-Tray Sorter enables high-performance sortation for store delivery, returns processing, inbound and outbound processes as well as other applications.
DFT Split-Tray Sorter

Price from

Project-specific

Sorting performance/capacity (pcs./h)

7,000-20,000 pcs/h

Product type

Polybag, Paperbag, Article (unpacked)

Dimensions product type (L)

50 - 760 mm

Dimensions product type (B)

50 - 360 mm

Dimensions product type (H)

1 - 200 mm

More Information

GEBHARDT SpeedSorter® loop

The GEBHARDT SpeedSorter® loop is a high-performance sorting system and can transport up to 16,500 conveyed goods per hour, depending on the goods to be sorted and the carrier size.
GEBHARDT SpeedSorter® loop

Price from

On request

Product type

Bins & Containers, Cartons, Polybag, Paperbag

Max. dimensions product type (L)

1,200 mm

Max. dimension product type (W)

600 mm

Max. dimensions product type (H)

600 mm

Max. weight of the product

35 kg

More Information
