Shuttle System - Large Loads

Key Facts

  • Suitable for many pallets per article type
  • Intensive rotation of homogeneous article types
  • Increased storage density
More Information
Lagerlogistik – Shuttle Lager

  • Long-Term

  • No Price Information Available

  • To the Offerings

  • Long-Term

  • No Price Information Available

  • To the Offerings

Advantages and areas of application of shuttle systems for GLT

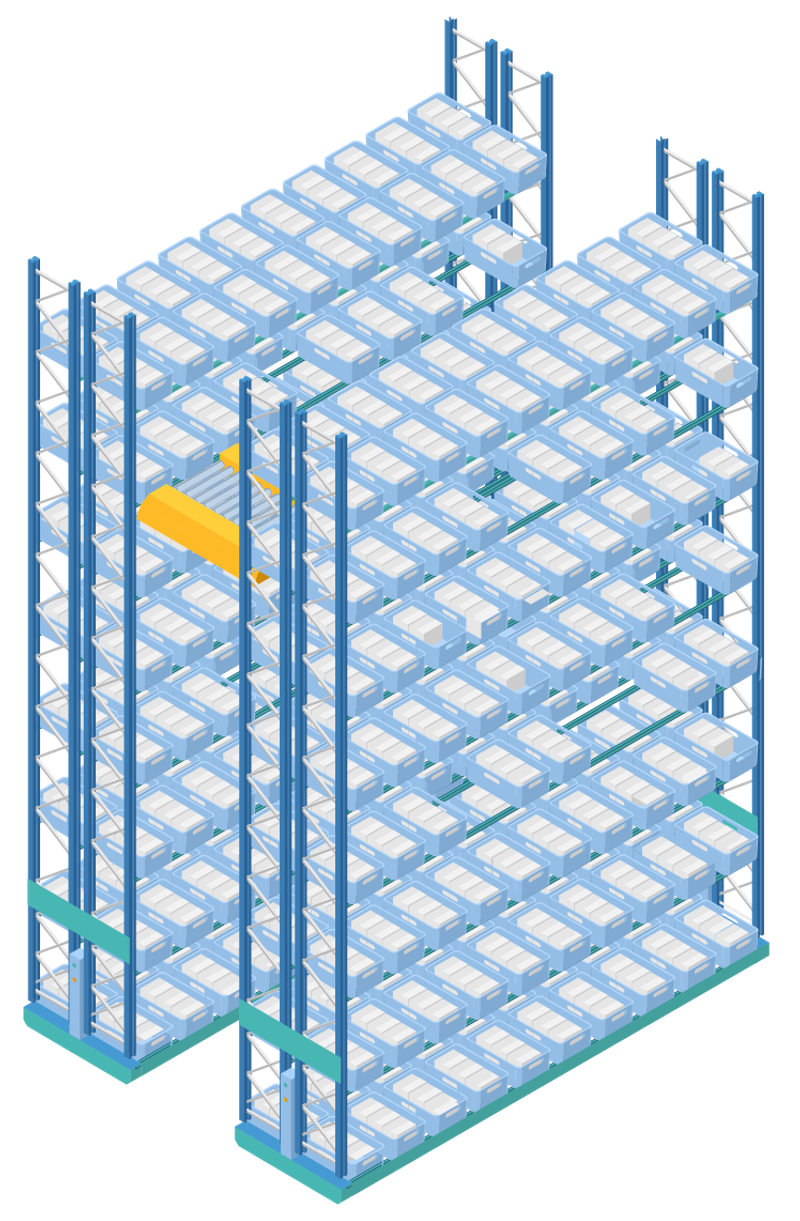

Shuttle storage systems for large load carriers (GLT) are used when efficient storage, handling and automated movement of large quantities of goods or bulky goods is required. A shuttle vehicle moves on rails to automatically transport, store and retrieve goods on large load carriers. Pallets are usually used as load carriers, which often need to be stored in large quantities for each type of item. Depending on requirements, other load carriers such as pallet cages, industrial pallets or custom-made products for certain bulky items can also be used. In order to achieve a high storage density, the load carriers can be stored in single or multiple depths.
 Read More
Does this solution fit your needs?

Shuttle System - Large Loads - Solves the following Problems!

Select one of the problems. You will receive instructions that you can use to calculate optimization potential.
Continue to the offerings.

Shuttle System - Large Loads - Find the Right Offering for You

Select products and receive detailed information. You can use the platform to contact product suppliers

GEBHARDT Omnipallet®

The GEBHARDT Omnipallet® is a robot- or shuttle-based storage system in the field of pallet technology, which is used as a scalable and modular storage solution.
GEBHARDT Omnipallet®

Price from

On request

Primary load carrier

Euro pallet

Secondary load carrier

Industrial pallet, Lattice box pallet

Max. dimensions primary load carrier (L)

1,200 mm

Max. dimensions primary load carrier (W)

1,000 mm

Max. dimensions primary load carrier (H)

2,500 mm

More Information

S-MATIC cube

The S-MATIC cube from Linde MH is a compact, automated 4-way pallet shuttle system designed for high-efficiency storage. It handles euro and industrial pallets up to 1.5 tons and moves up to 100 pallets per hour, delivering maximum throughput in minimal space.
S-MATIC cube

Price from

Project-specific price

Primary load carrier

Euro pallet

Secondary load carrier

Industrial pallet

Max. dimensions primary load carrier (L)

1,200 mm (Depends on the project)

Max. dimensions primary load carrier (W)

800 mm (Depends on the project)

Max. dimensions primary load carrier (H)

Depends on the load

More Information

XR-PR-Shuttle

With the X-PR SHUTTLE shuttle racking system, WDX has developed a semi-automatic racking system for the compact storage of pallets.
XR-PR-Shuttle

Price from

On request

Primary load carrier

Euro pallet, Industrial pallet (Other...

Secondary load carrier

Other load carriers on request

Max. dimensions primary load carrier (L)

1,200 mm

Max. dimensions primary load carrier (W)

1,000 mm

Max. dimensions primary load carrier (H)

On request

More Information

ROCKET Shuttle System

The ROCKET Shuttle System enables extremely space-efficient storage automation of standard small load carriers weighing up to 50 kilograms. It is characterized by its maximum compaction of storage locations and low susceptibility to faults, can be flexibly scaled and easily integrated.
ROCKET Shuttle System

Price from

Project-specific

Primary load carrier

Bins & Containers, Trays

Secondary load carrier

Cartons, Polybag, Paperbag, Bags...

Max. dimensions primary load carrier (L)

600 mm

Max. dimensions primary load carrier (W)

400 mm

Max. dimensions primary load carrier (H)

500 mm

More Information

PowerStore

PowerStore: Flexible & efficient - optimum utilization of storage space for pallets
PowerStore

Price from

On request

Primary load carrier

Euro pallet, Industrial pallet, Lattice...

Secondary load carrier

CHEP, Block pallet, Stringer, AS

Max. dimensions primary load carrier (L)

1,400 mm

Max. dimensions primary load carrier (W)

1,400 mm

Max. dimensions primary load carrier (H)

3,000 mm

More Information

Fb Roller Shuttle

Suitable for all industries with loads in roll form, e.g. weaving mills, paper and wood industry
Fb Roller Shuttle

Price from

Project-specific

Primary loadcarrier

Large load carrier

Secondary load carrier

Load without load carrier

Primary load carrier dimensions (L)

1,380 mm

Primary charge carrier dimensions (B)

Ø 700 mm (different diameters possible)

Primary charge carrier dimensions (H)

Ø 700 mm (different diameters possible)

More Information

Fb Pallets Shuttle

Fully automated compact warehouse for pallets as load carriers.
Fb Pallets Shuttle

Price from

Project-specific

Primary charge carrier

Europallet

Secondary charge carrier

Mesh box, industrial pallet

Primary load carrier dimensions (L)

1,200 - 1,240 mm

Primary load carrier dimensions (B)

800 - 840 mm

Primary load carrier dimensions (H)

110 - 1,100 mm

More Information
Continue to combinable solutions.

Shuttle System - Large Loads - The Solution can be Combined with the Following Solutions

Here you can find solutions, which can be combined with the presented solution.
Continue to similar solutions.

Shuttle System - Large Loads - The Following Solutions can also Solve the Pain Point

Here you can find other solutions, which are suitable for the optimization of the pain points (Storage and Retrieval errors) as well as variants of the current solution.
